Assignment through Tail Recursion

Assignment is the sine quo non of imperitive languages like FORTRAN and C, while in Scheme an unnecessary side effect is considered gauche, and implementing loops with side-effect-free tail-recursive loops is not just ne plus ultra, but de rigueur.

Definition

A call to a procedure bar within the code for a procedure foo is tail-recursive if it is in a position such that whatever is returned by the call to bar will be immediately returned by foo, without any further processing.

For example, the call to bar within this definition of foo is tail-recursive:

(define foo
  (lambda (x y)
    (if (equal? x y)
        (bar (car x) 'y 0)
       'something)))

When a procedure is defined recursively, and all its calls to itself are tail-recursive calls, then that procedure is itself called tail-recursive.

So the following function is not tail-recursive:

(define rev1
  (lambda (lis)
    (if (null? lis)
        lis
        (append (rev1 (cdr lis))
                (list (car lis))))))
while the auxiliary function used here is tail-recursive:
(define rev2
  (lambda (lis)
      (rev2-aux '() lis)))

(define rev2-aux
  (lambda (end-of-result to-be-reversed)
    (if (null? to-be-reversed)
        end-of-result
        (rev2-aux (cons (car to-be-reversed)
                             end-of-result)
                  (cdr to-be-reversed)))))

Optimization of Tail-Recursive Calls

A good compiler will compile a tail-recursive procedure call as a BRANCH instead of the PUSH-RETURN-ADDRESS + BRANCH required for a non-tail-recursive procedure call. For a deeply nested call graph, this can save a great deal of intermediate storage.

(To be technical, in the tail-recursive case the compiler would deallocate the current stack frame which holds the variable bindings of the current function invocation before the branch, while in the non-tail-recursive case these binding cannot be discarded, as they will be used again after the function being called returns.)

All Scheme implementations are required to perform the above optimization. (Some C compilers will do this too, while others, in particular gcc 2.7 and below, do so only when a procedure makes a tail-recursive call to itself.)

When we draw the call graph for the above code we can think of the arrows pointing back, which indicate where the result of a function will be returned to, to skip past tail-recursive invocations.

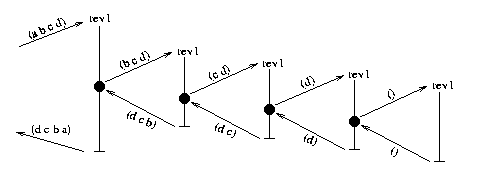

So for rev1 the call graph looks like this

and when executing the rightmost invocation of rev1, the computer must store the entire chain of arrows leading to the left.

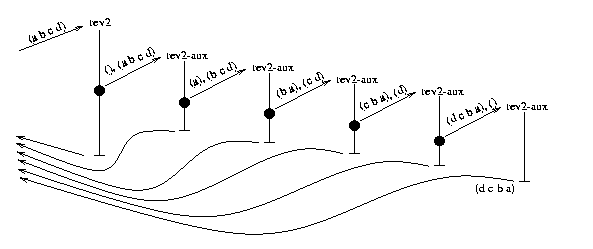

On the other hand, for rev2 and its helper function rev2-aux, the call graph has return arrows that skip over tail-recursive calls, so the computer ends up storing only one return arrow rather than an entire chain of them.

Goto translated into Tail-Recursion

It is interesting to note that ``spaghetti code,'' code full of GOTO statements, can be mechanically transformed into code full of tail-recursive procedure calls instead. This is best seen by example.

Here is some spaghetti code:

 L1:
     (foo)
     (bar)
     (if (gronk) (goto L3) (goto L4))
 L2:
     (baz)
     (rubber)
     (tire)
     (if (grink) (goto L1) (goto L2))
 L3:
     (dog)
     (cat)
     (if (rat) (goto L2) (goto L4))
 L4:
     (bat)
     (if (hat) (goto L4) (goto L3))
We can translate this mechanically into goto-less code with tail-recursive procedure calls:
(define (L1)
  (foo)
  (bar)
  (if (gronk) (L3) (L4)))

(define (L2)
  (baz)
  (rubber)
  (tire)
  (if (grink) (L1) (L2)))

(define (L3)
  (dog)
  (cat)
  (if (rat) (L2) (L4)))

(define (L4)
  (bat)
  (if (hat) (L4) (L3)))

Efficient tail-recursive loops

Here is an efficient Fibonacci(n) routine in a language with with assignment, labels, gotos, and explicit returns.
 Fibb:
      (set! i     1)
      (set! f_im1 1)
      (set! f_i   1)
 L2:
      (if (= i n)
          (return f_i)
	  (let ((new (+ f_i f_im1)))
	    (set! f_im1 f_i)
	    (set! f_i   new)
	    (set! i     (+ i 1))
	    (goto L2)))
We can translate this into Scheme, with goto replaced by tail-recursive procedure calls, return replaced by Scheme's implicit returns, and the assignments replaced by binding.
(define fibb
  (lambda (n)
      (fibb-L2 n 1 1 1)))

(define fibb-L2
  (lambda (n i f_im1 f_i)
      (if (= i n)
        f_i
        (let ((new (+ f_i f_im1)))
          (fibb-L2 n
	           (+ i 1)
		   f_i
		   new)))))
Similarly, if we want to add up the first n squares, S(n)=12+22+32+42+...+n2, we can note that S(n)=S(n-1)+n2, and use this insight to make a recursive definition
(define S
  (lambda (n)
      (if (= n 0)
        0
        (+ (S (- n 1)) (* n n))))
but this non-tail-recursive function would require a great deal of intermediate storage to calculate (S 40000000). Instead we can use a tail-recursive definition, by using a helper function Saux which is defined by Saux(n,a)=a+12+22+32+42+...+n2, and note the two properties S(n)=Saux(n,0) and Saux(n,a)=Saux(n-1,a+n2), which allows us to make a tail-recursive definition
(define S (lambda (n) (Saux n 0)))

(define Saux
  (lambda (n a)
      (if (= n 0)
        a
        (Saux (- n 1) (+ a (* n n))))))
Which is tail-recursive and therefore does not consume inordinate storage when called with a large argument.
Barak Pearlmutter <bap@cs.unm.edu>
